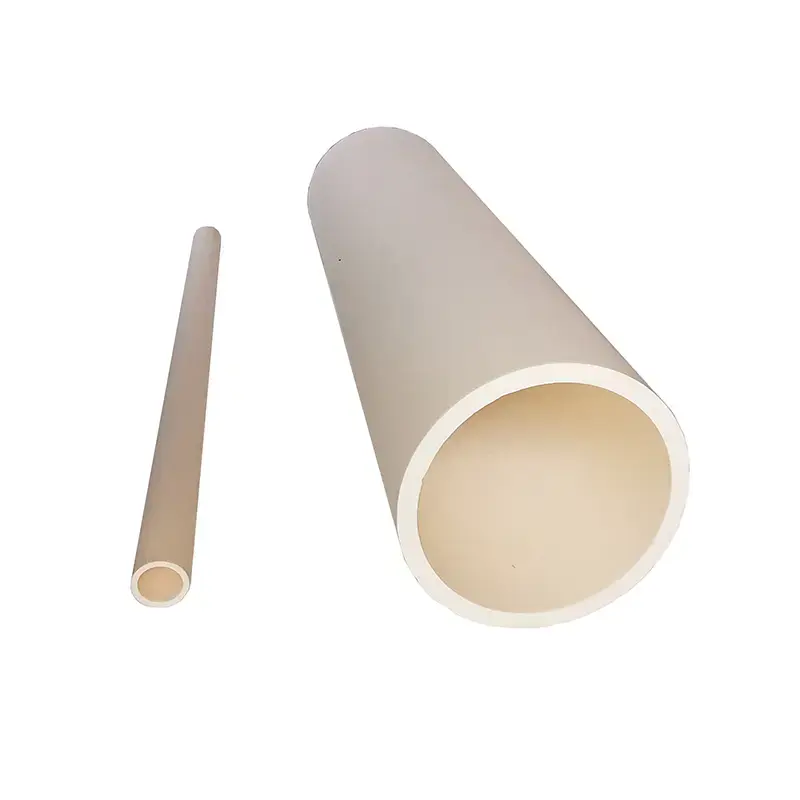

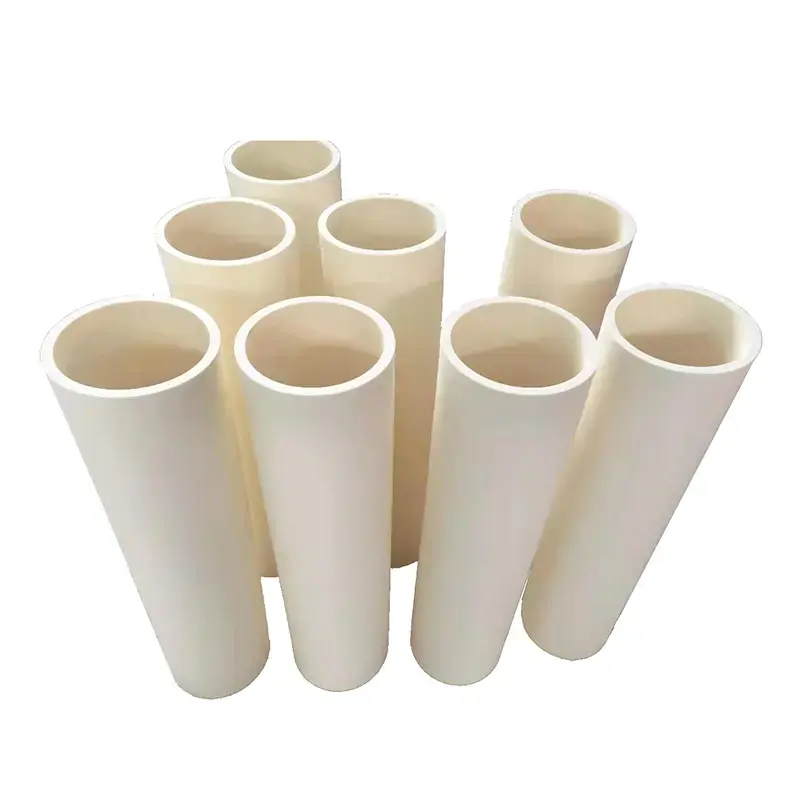

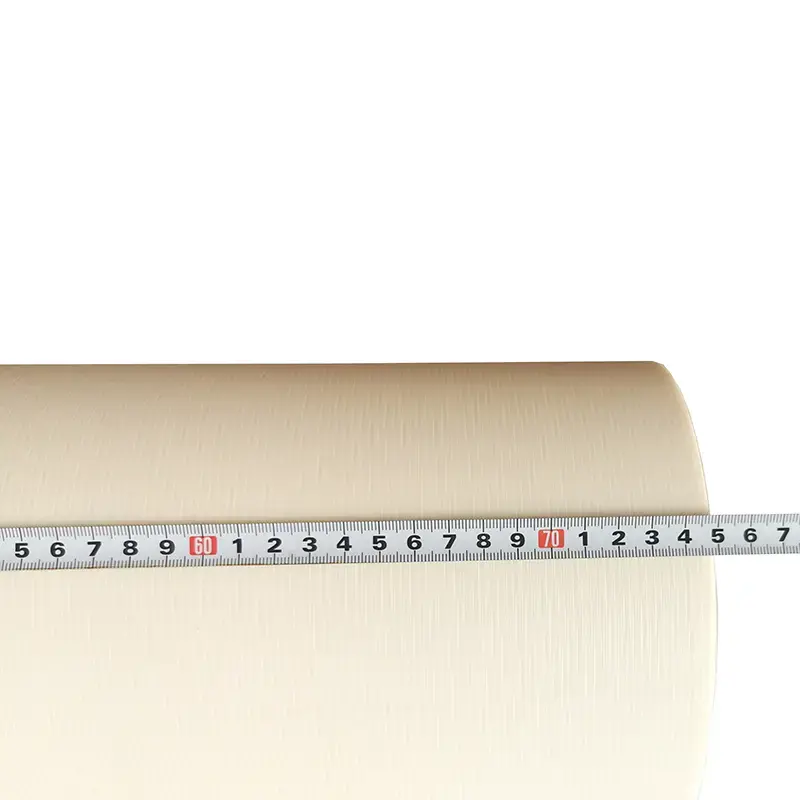

High Strength Alumina Ceramic Tube For High Temperature Use
Product Feature
● High Strength and Hardness: Alumina ceramics are known for their high compressive strength and hardness, making them suitable for applications that require durability.
● High Temperature Resistance: They can withstand high temperatures (up to 1600°C or more) without deforming, making them ideal for high-temperature applications.
● Chemical Resistance: Alumina is resistant to many chemicals, acids, and alkalis, which makes it suitable for use in harsh environments.
● Electrical Insulation: Alumina ceramic tubes are excellent electrical insulators, making them useful in electrical and electronic applications.
● Low Thermal Conductivity: They have low thermal conductivity, which can be beneficial in applications requiring thermal insulation.
● Biocompatibility: Certain grades of alumina are biocompatible, making them suitable for medical applications.
Product Parameter
|
Properties / Material |
95% Alumina |
99% Alumina |
|
Color |
White |
Ivory |
|
Density (g/cm3) |
3.6 |
3.9 |
|
Modulus Of Elasticity(@25°C, GPa) |
300 |
380 |
|
Compressive Strength (MPa) |
2100 |
2500 |
|
Vicker's Hardness(GPa) |
11.5 |
20 |
|
Flexural Strength (MPa) |
300 |
350 |
|
Thermal Expansion Coefficient (10-6/°C) |
6.5 |
8.6 |
|
Dielectric Strength(KV/mm) |
30 |
30 |
|
Thermal Conductivity (W/mk) |
25 |
25 |
|
Volume Resistivity(Ω.m) |
>1015 |
>1015 |
Application Area
● Minig opening, chemical, electroplating, electrolyzation, waste water treatment, pure water treatment, high temperature flue gas filtration.
● Electrical Insulators: Used in electrical components, such as insulators for high-voltage applications.
● Thermal Barriers: Employed in thermal barrier coatings and as insulators in high-temperature furnaces.
● Piping and Tubing: Used in chemical processing and as protective tubing for various applications.
● Medical Devices: Utilized in dental and orthopedic implants due to their biocompatibility and strength.
● Wear-Resistant Components: Used in applications where wear resistance is critical, such as in pumps and valves.
● Laboratory Equipment: Employed in laboratory settings for various applications, including crucibles and reaction vessels.

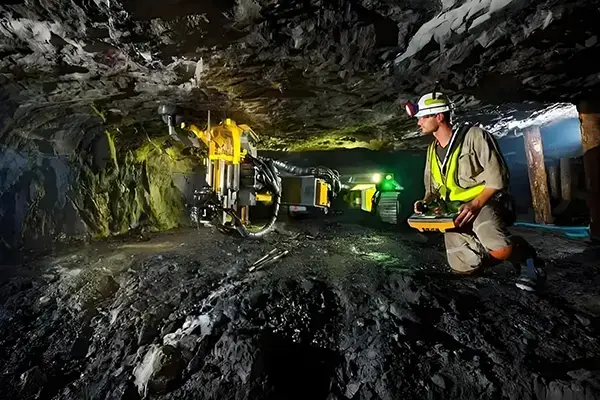

Minig Opening

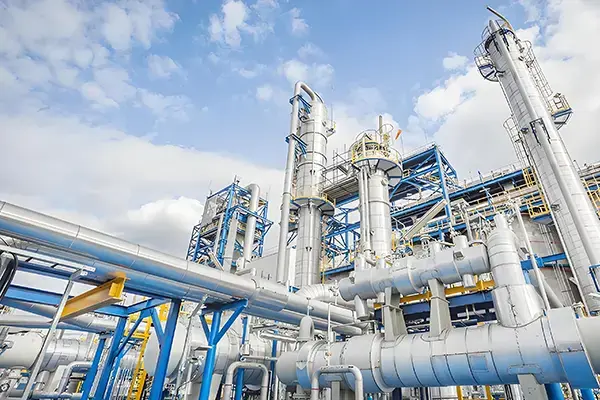

Chemical

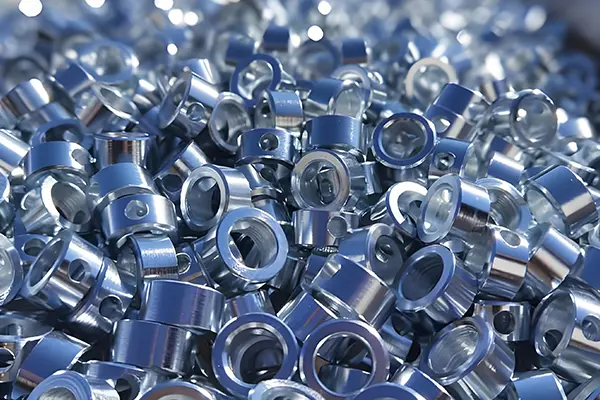

Electroplating

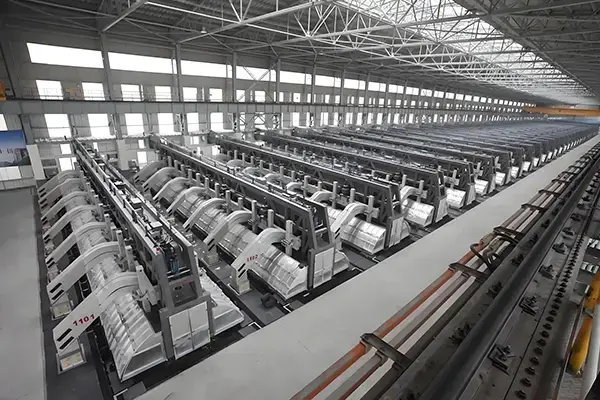

Electrolyzation
Waste Water Treatment
Pure Water Treatment
High Temperature Flue Gas Filtration

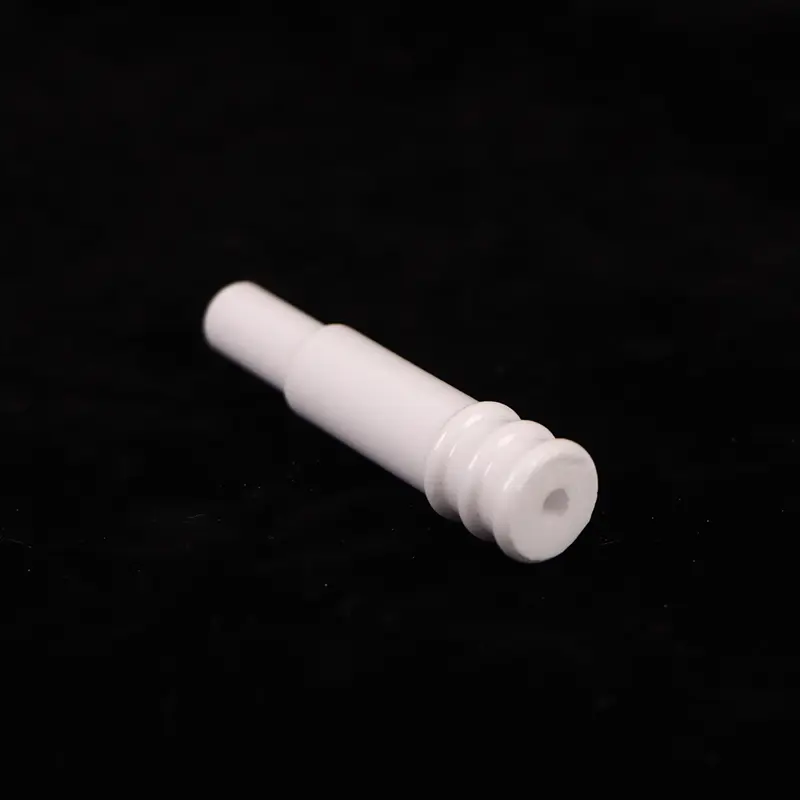

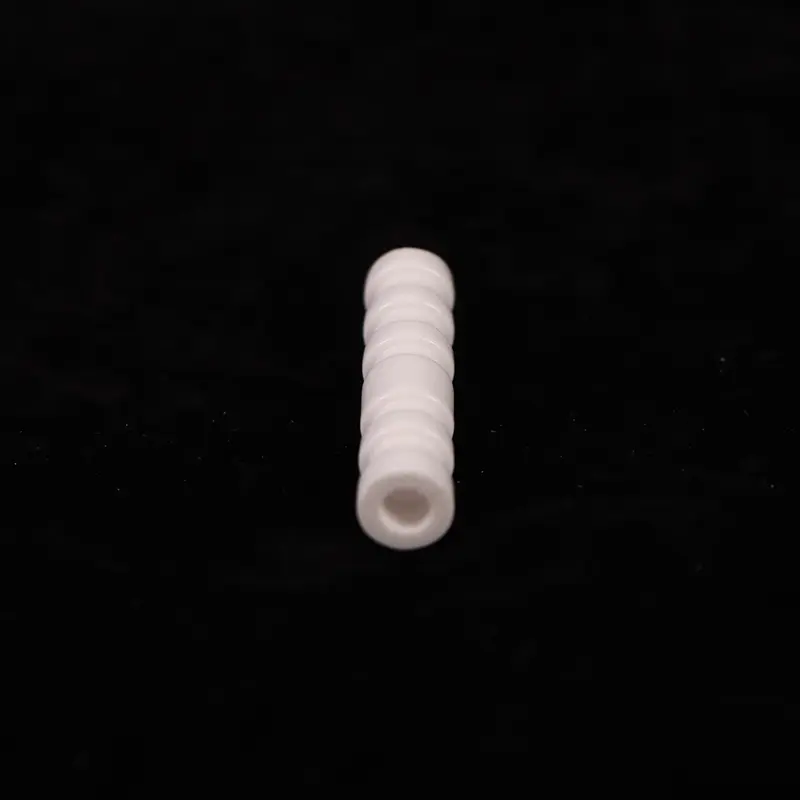

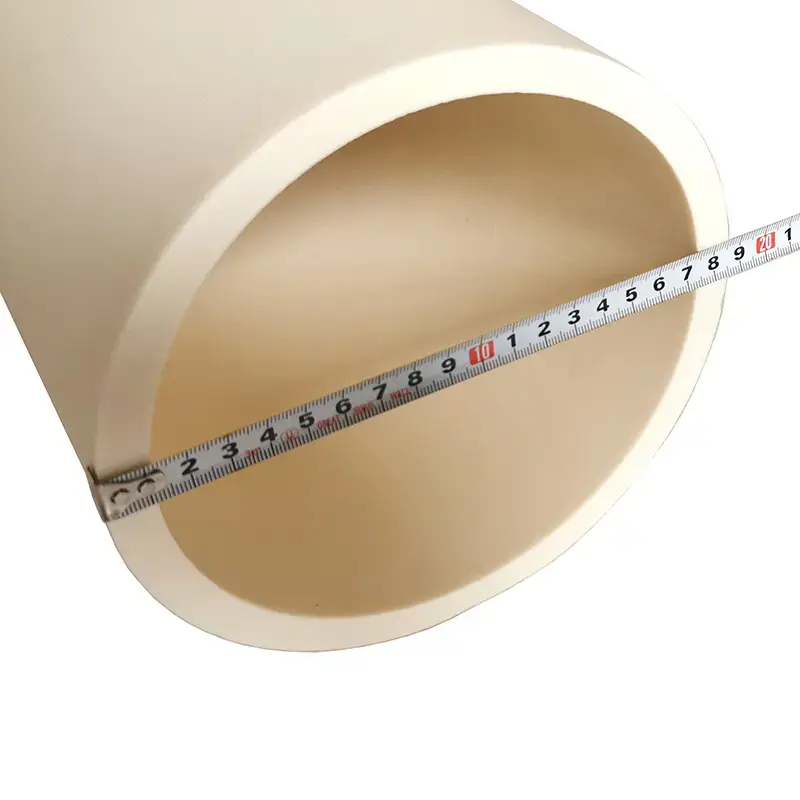

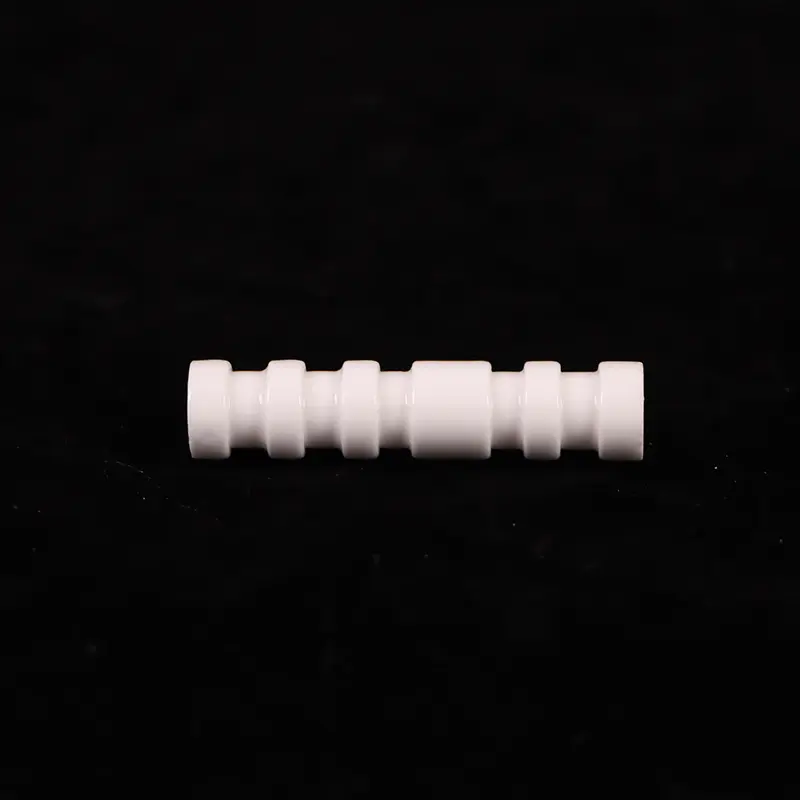

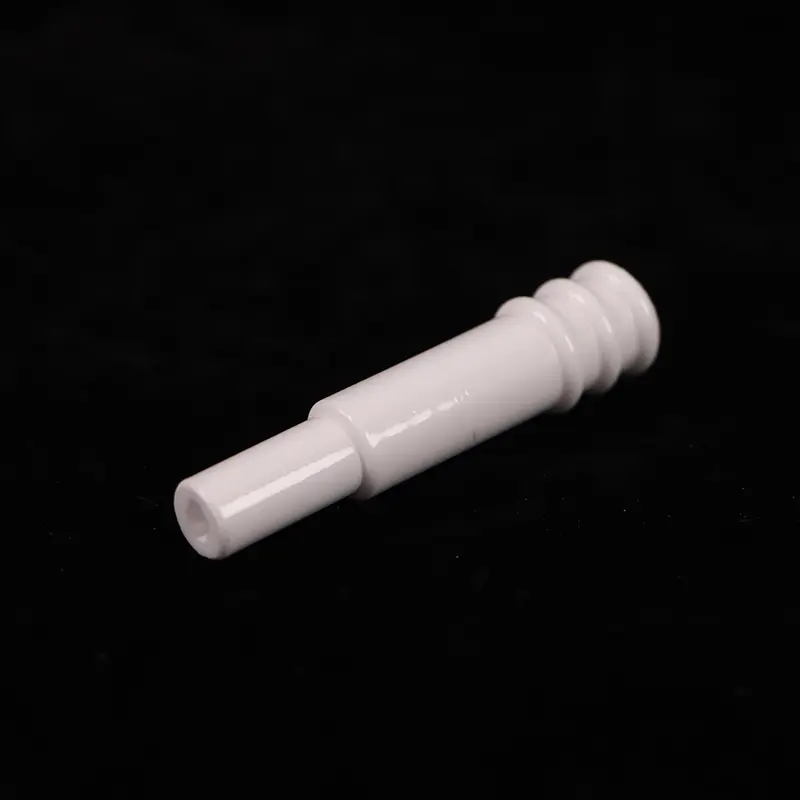

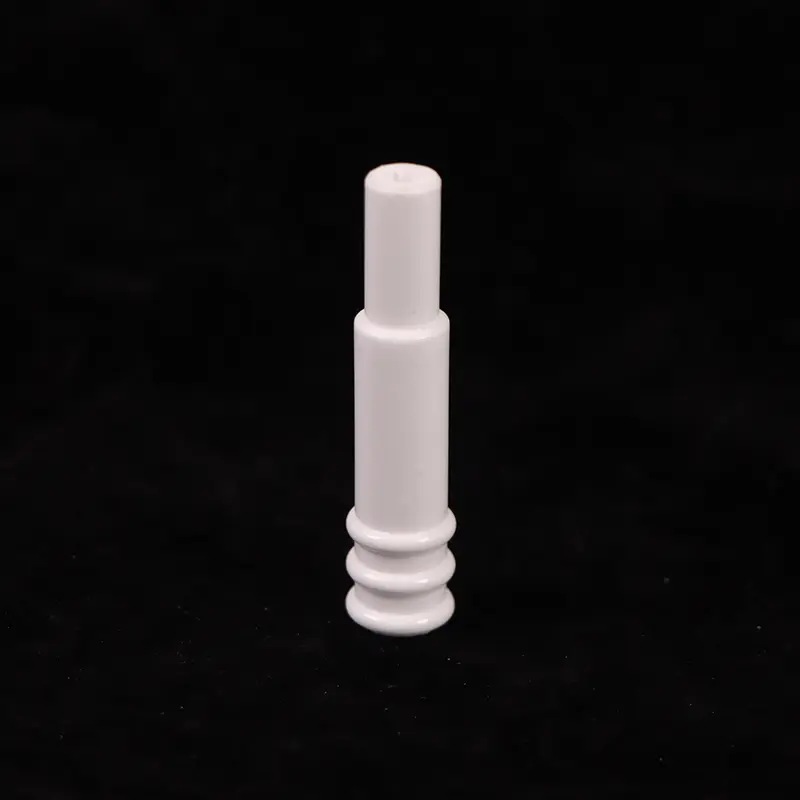

Product Detail
