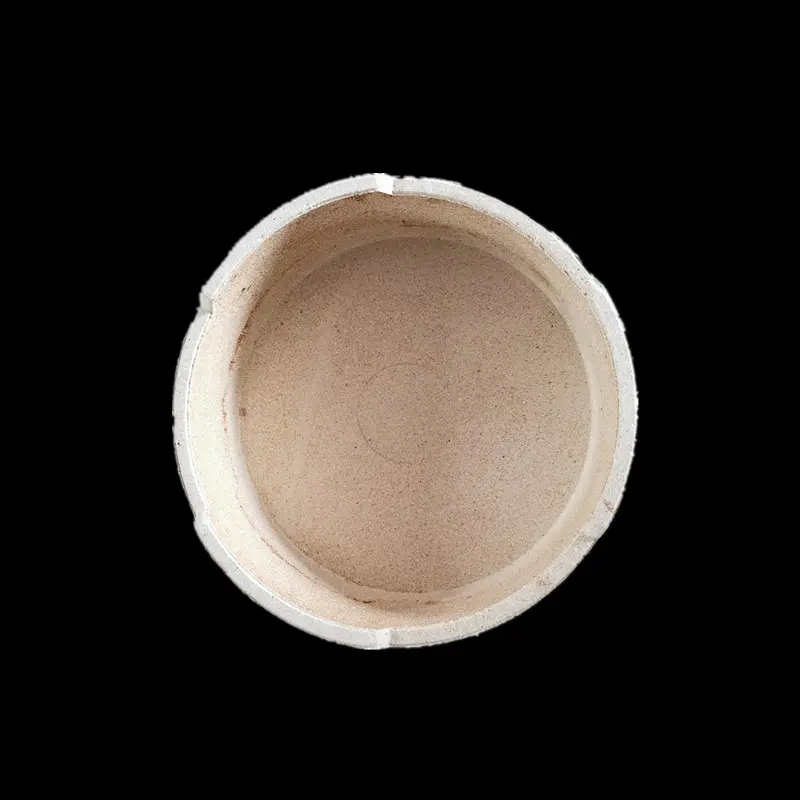

Good thermal shock resistance Cordierite mullite sagger for pigment firing

Good thermal shock resistance Cordierite mullite sagger for pigment firing

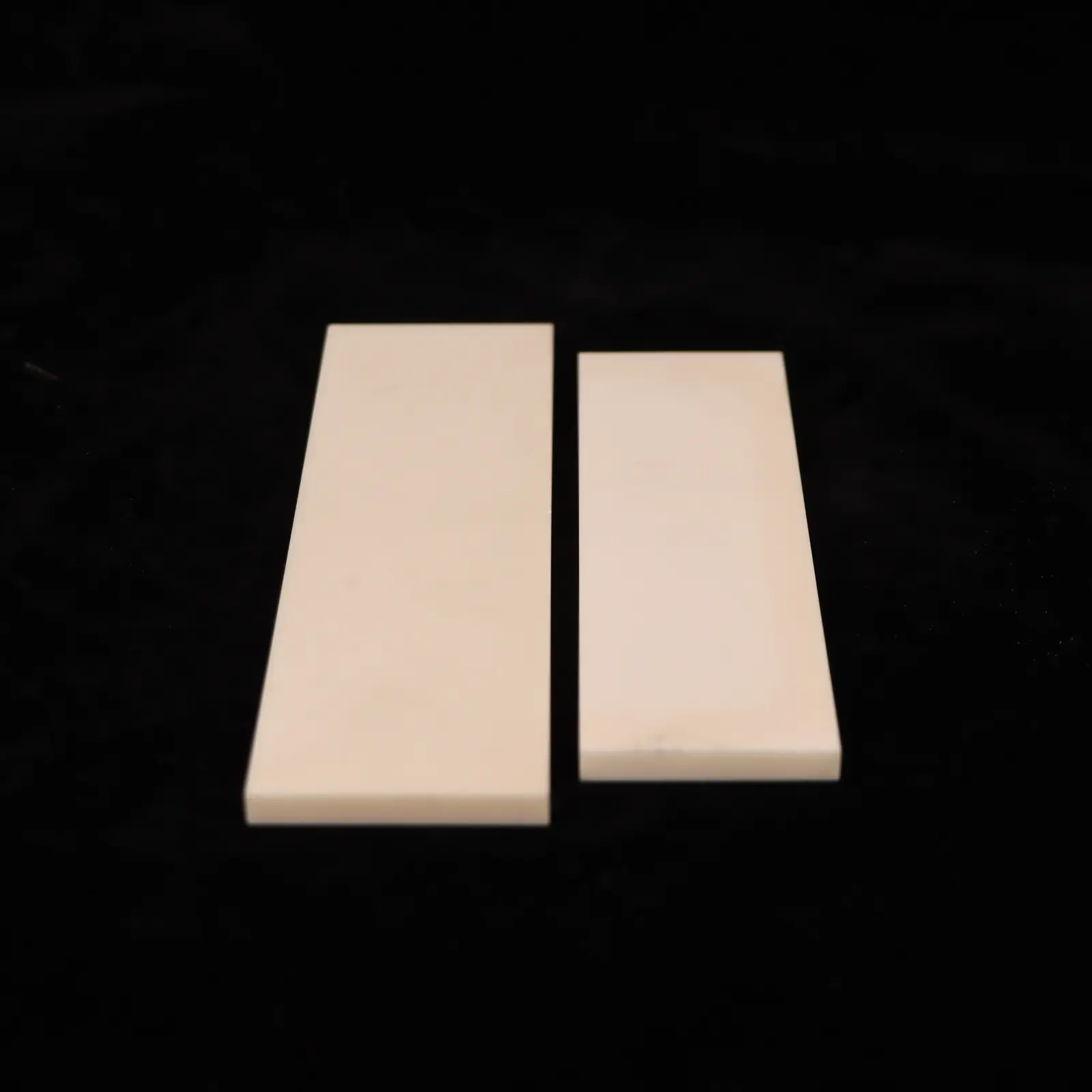

High temperature use high grade 99% Alumina Ceramic Substrate

High temperature use high grade 99% Alumina Ceramic Substrate

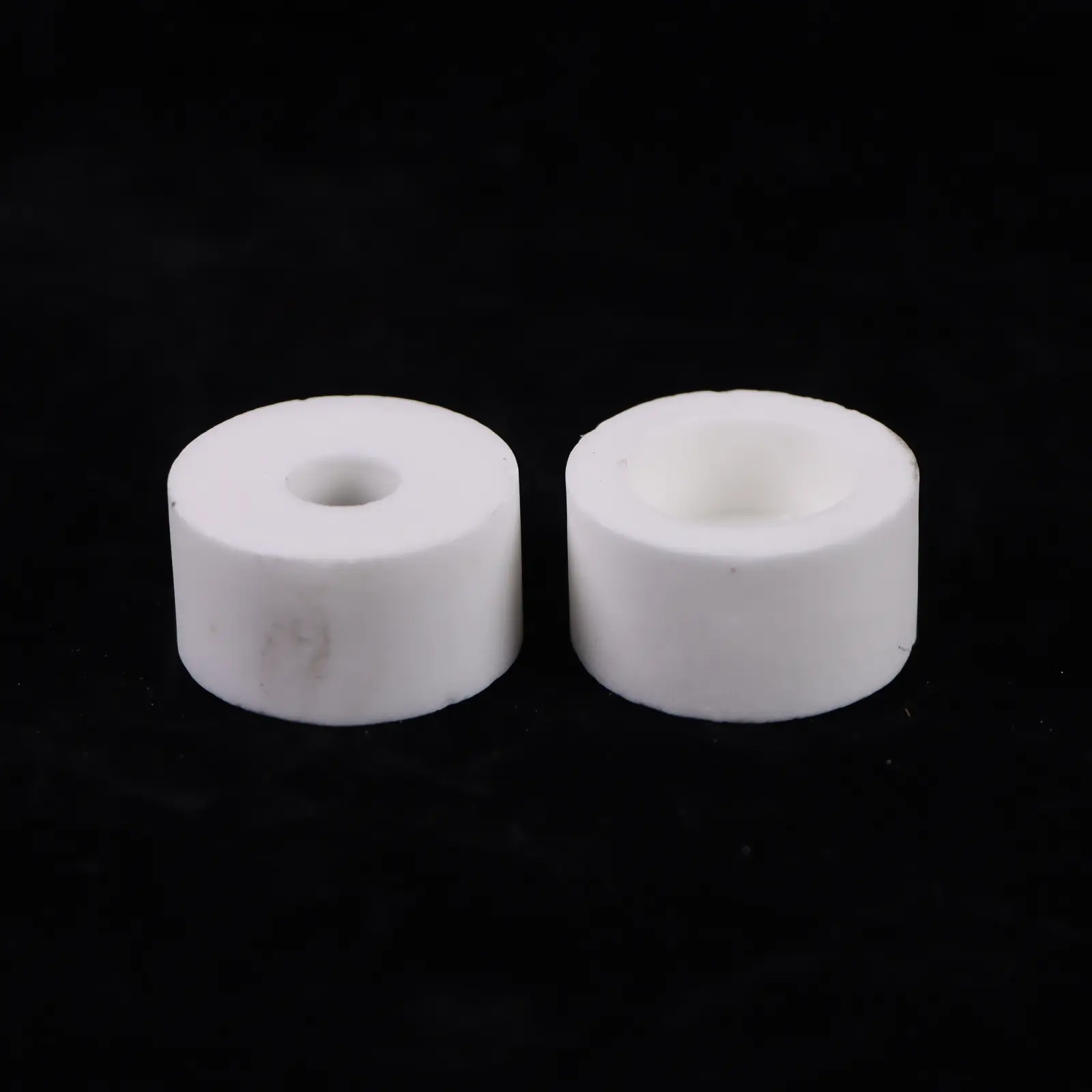

High performance high strength high temperature alumina ceramic spacer

High performance high strength high temperature alumina ceramic spacer

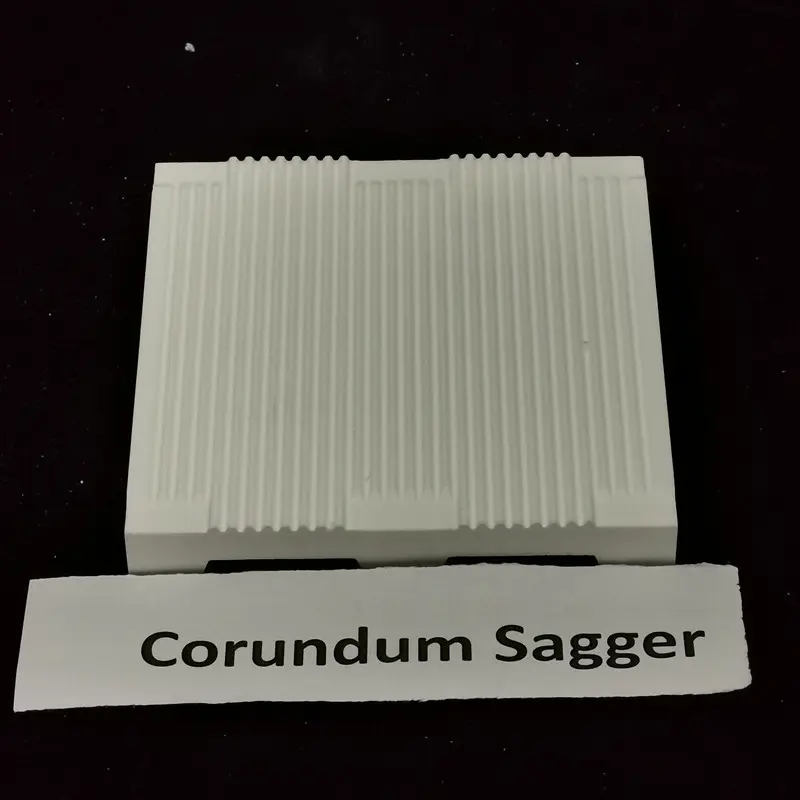

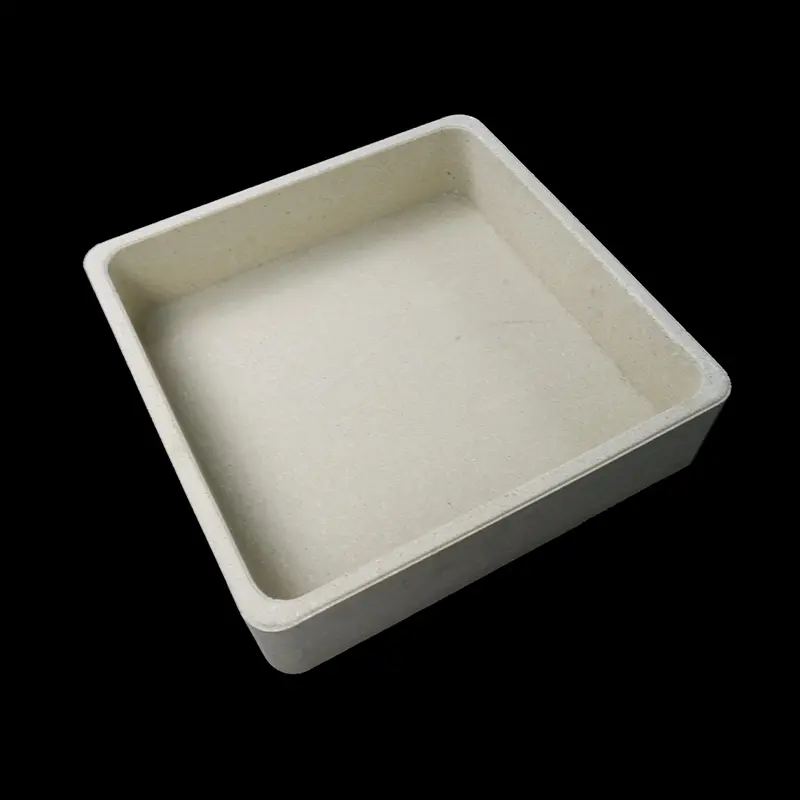

High-Performance Kiln Furniture Stackable Corundum Saggers for Industrial Firing

High-Performance Kiln Furniture Stackable Corundum Saggers for Industrial Firing
electric heating ceramic supports used for dryer machine

electric heating ceramic supports used for dryer machine
High Dielectric Strength Thermal Shock Resistance ceramic ring in Electrical and Industrial Applications

High Dielectric Strength Thermal Shock Resistance ceramic ring in Electrical and Industrial Applications

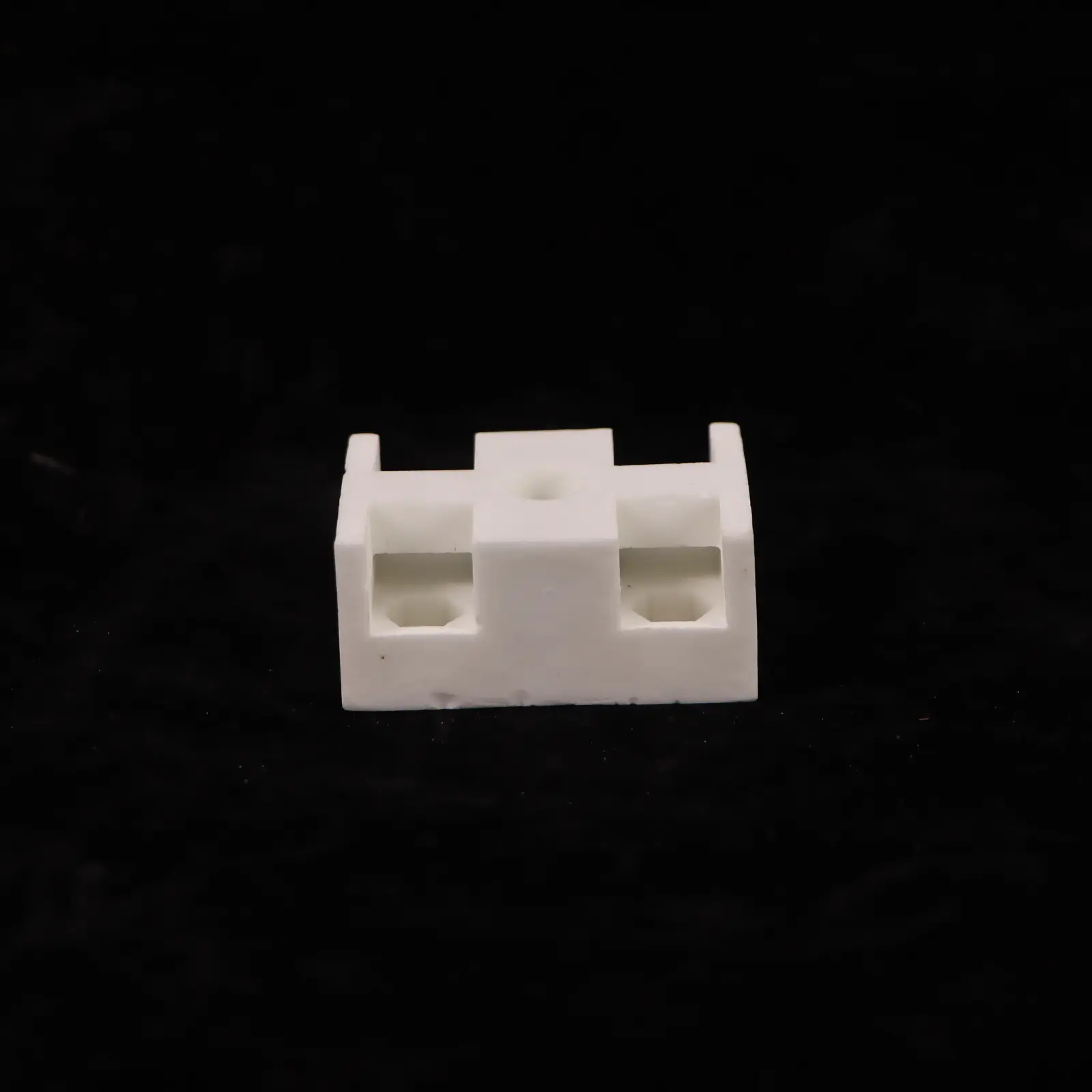

High-Temperature Sintering ceramic terminal blocks for wiring

High-Temperature Sintering ceramic terminal blocks for wiring

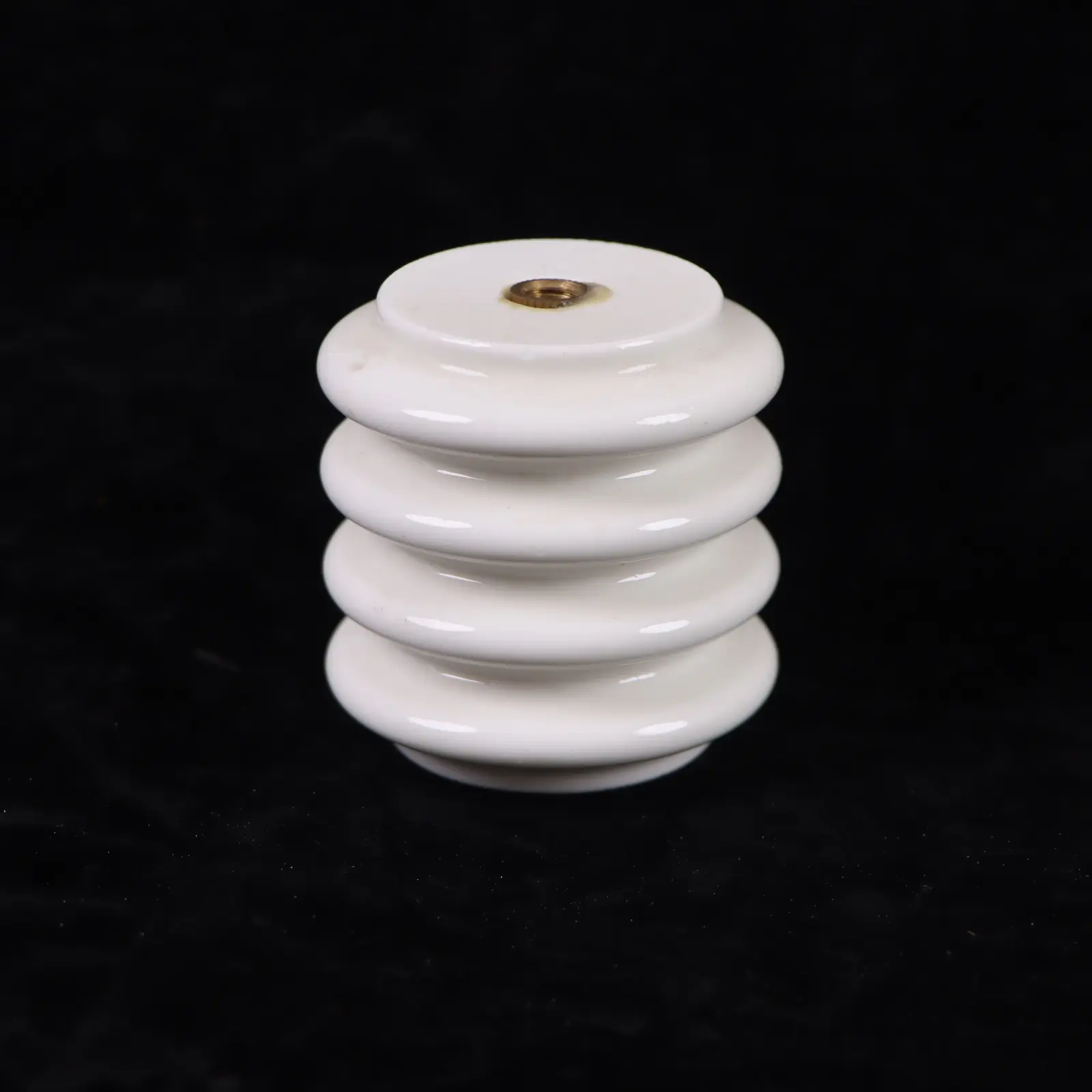

Good electricity insulation ceramic insulators for electrical and electronic systems

Good electricity insulation ceramic insulators for electrical and electronic systems
High-Performance Thermal Management Solutions Cordierite Ceramic Cover Plates

High-Performance Thermal Management Solutions Cordierite Ceramic Cover Plates
01
Silicon Carbide Plate
Silicon Carbide Plate

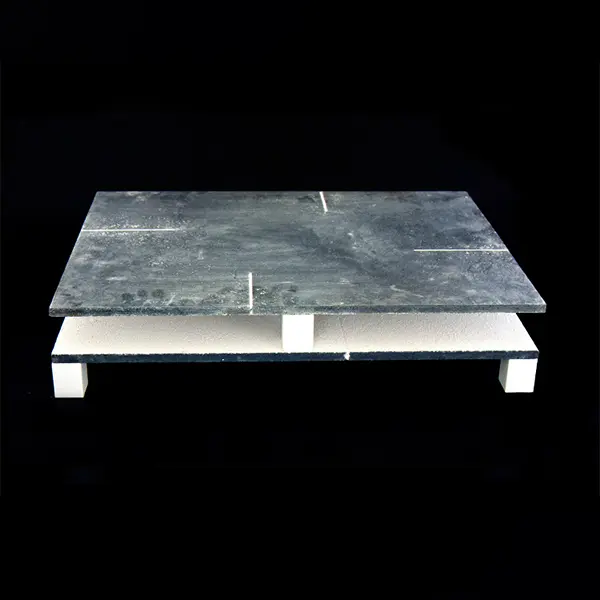

High Temperature Resistance Refractory Silicon Carbide Plate For Firing Ceramics

Our Senior refractory Silicon carbide plate is made of high purity silicon carbide material and it can offer good heat stability, high mechanical strength at high temperature, excellent thermal stability and distortion resistance at high temperature. Silicon carbide plate is widely used to fire ceramics, such as sanitary ceramic, daily ceramic, art ceramic, pottery ,porcelain tableware and so on.

Through the burning of 1400° C, its products can offer mild, bright and white enamel feeling. Our Silicon carbide plate can save the energy and increase the volume of kiln; Therefore it can increase the efficiency and economy. At the same time, our Silicon carbide  batts  is harmless to environment. Through quality product and honest cooperation, we will bring you benefit and trust.

    Contact us
    product details
    product description

    Product Feature


    ● High thermal conductivity.

    ● High abrasion resistance.

    ● Excellent oxidation resistance.

    ● Excellent thermal shock resistance.

    ● High mechanical strength at high temperature.

    ● Excellent corrosion resistance against chemicals.

    ● Excellent corrosion resistance at high temperature.

    ● Excellent thermal stability and distortion resistance at high temperature.


    Product Parameters

    Item

    Data

    volume density(g/cm3)

    2.70-2.75

    apparent porosity(%)

    7-8

    strength at normal temperature(Mpa)

    >50

    high temperature bending strength(Mpa/1400℃)

    >55

    cold crushing strength

     >90

    (Mpa)

    refractoriness under load

    >1750(T2)2Kg/cm2

    (℃)

    maximum service temperature (℃)

    1450

    pyroconductivity (Kcal/m.h.℃)

    13.5-14.5

    thermalexpansivity

    4.2-4.8

    (×10-6/℃)

    chemical compent

    SiC>90%

    Fe2O3<0.3%

    Al2O3>99%(surface coating)

    Application Field

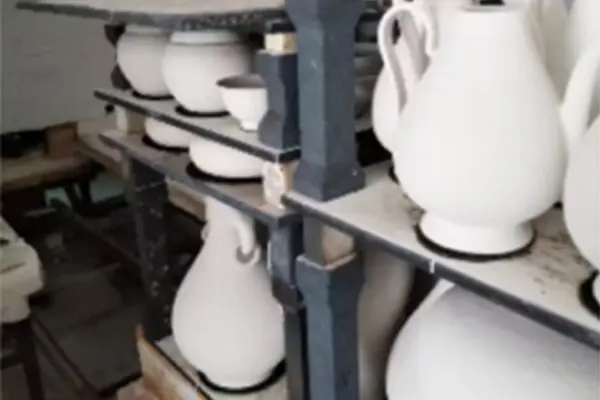

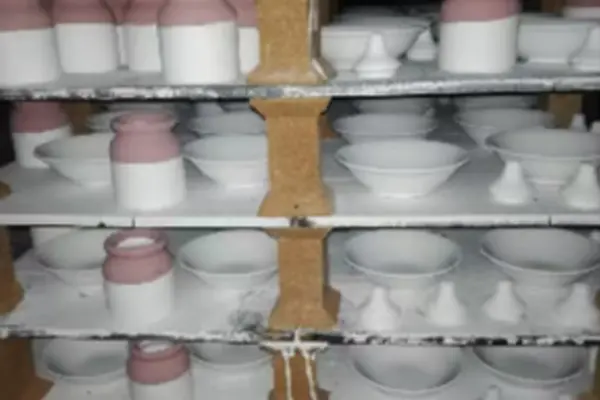

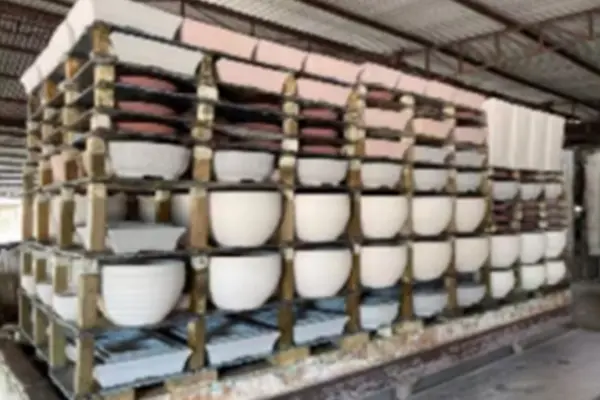

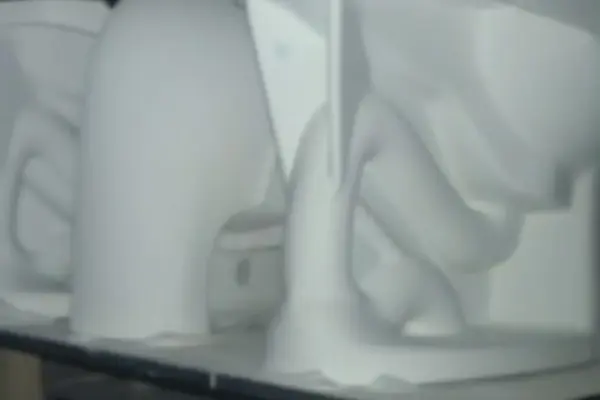

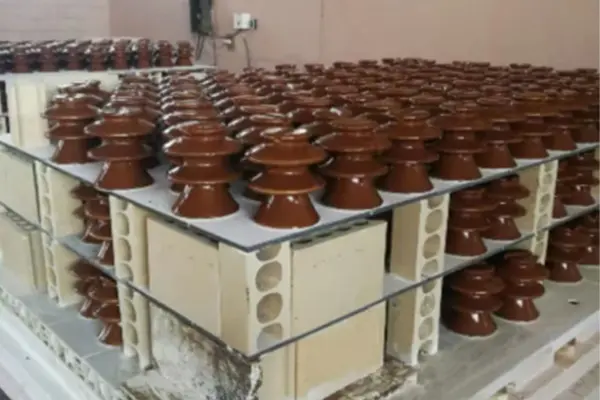

    Silicon carbide plate is widely used to fire Sanitary Ceramic, Daily Ceramic, Craft Ceramic, porcelain tableware, high voltage ceramic


    Silicon Carbide Plate
    Silicon Carbide Plate

    Silicon Carbide Plate
    Silicon Carbide Plate
    Silicon Carbide Plate

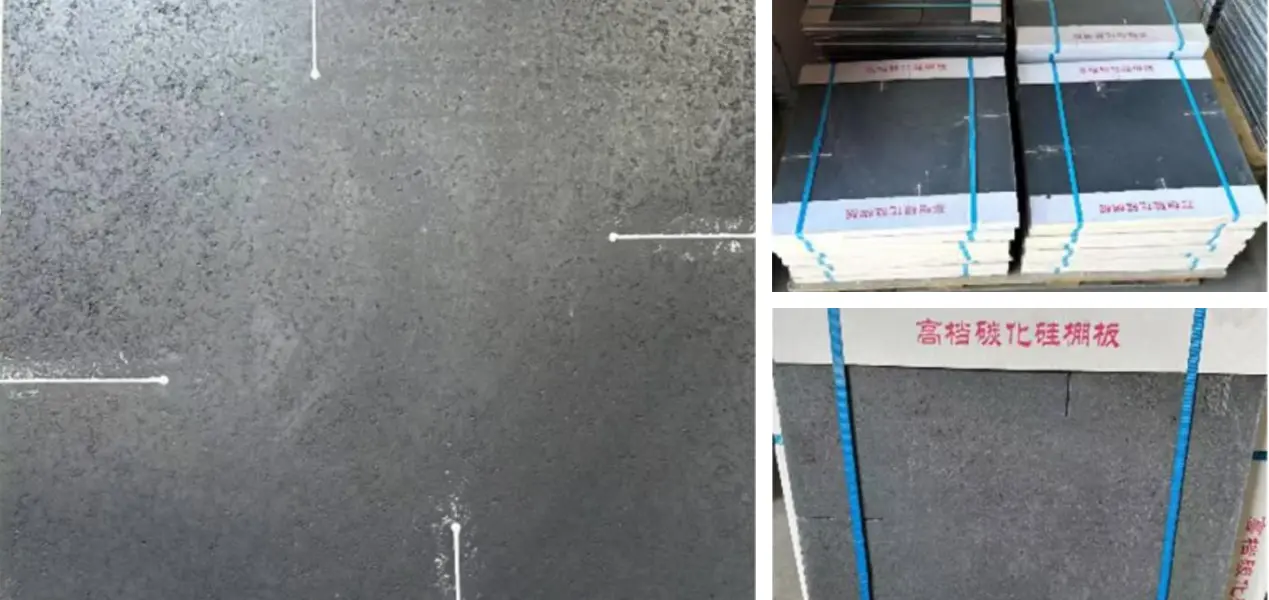

    Product Detail

    Silicon Carbide Plate
